面向LPC11U68的LPCXpresso电路板

OM13058 正常供应

滚动图片以放大

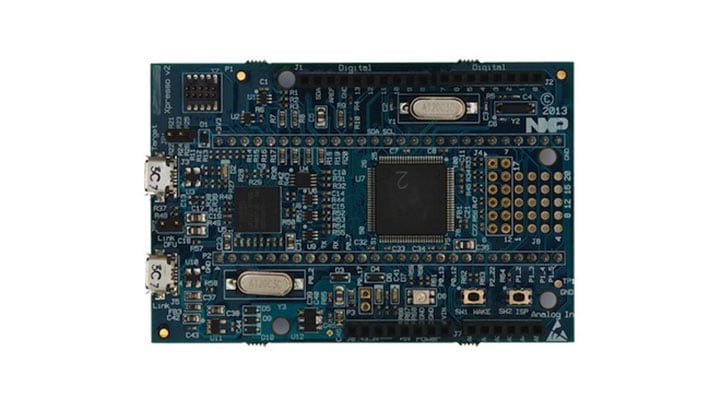

The LPC11U68 LPCXpresso board with NXP®'s LPC11U68 Arm® Cortex®-M0+ microcontroller is designed to make it as easy as possible to get started with your project.

LPC11U68 LPCXpresso板是用于评估LPC11E6x器件的正确开发板。所有其他的LPC11Exx器件应当使用适当的LPC11Exx开发板，请参见各自的产品信息页。

LPCXpresso is a low-cost development platform available from NXP supporting NXP's Arm®-based microcontrollers. 该平台包括一个基于Eclipse的简化IDE和附带JTAG调试器的低成本目标板。LPCXpresso是一个端到端解决方案，从初始评估到最终生产的各个应用开发环节为嵌入式工程师提供支持。

产品详情

支持的器件

处理器和微控制器

LPC1100 Cortex-M0+/M0

  • LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores

特征

调试

  • Integrated JTAG Debugger, which can also be used to debug an external target

工具和操作系统支持

  • 由LPCXpresso Eclipse-based IDE和GNU C/C++工具链提供完全支持，包括免费和专业版本

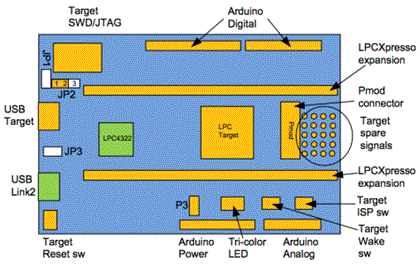

  • LPCXpresso / Arm® Mbed™、PMOD和Arduino® UNO扩展接头可轻松访问广泛的扩展板

用户组件

  • 3色LED
  • ISP & WAKE按钮可轻松测试软件功能

购买选项

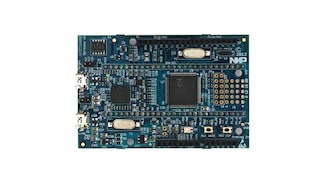

OM13058-Image

点击展开

  • OM13058
    正常供应

  • LPCXpresso board for LPC11U68 with Link2OBD.

    • LPCXpresso™ LPC11U68开发板
  • $27.60 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
