MR-HGK-RT Unmanned Aerial Vehicle Robotics Reference Design

MR-HGK-RT 全新
正常供应

滚动图片以放大

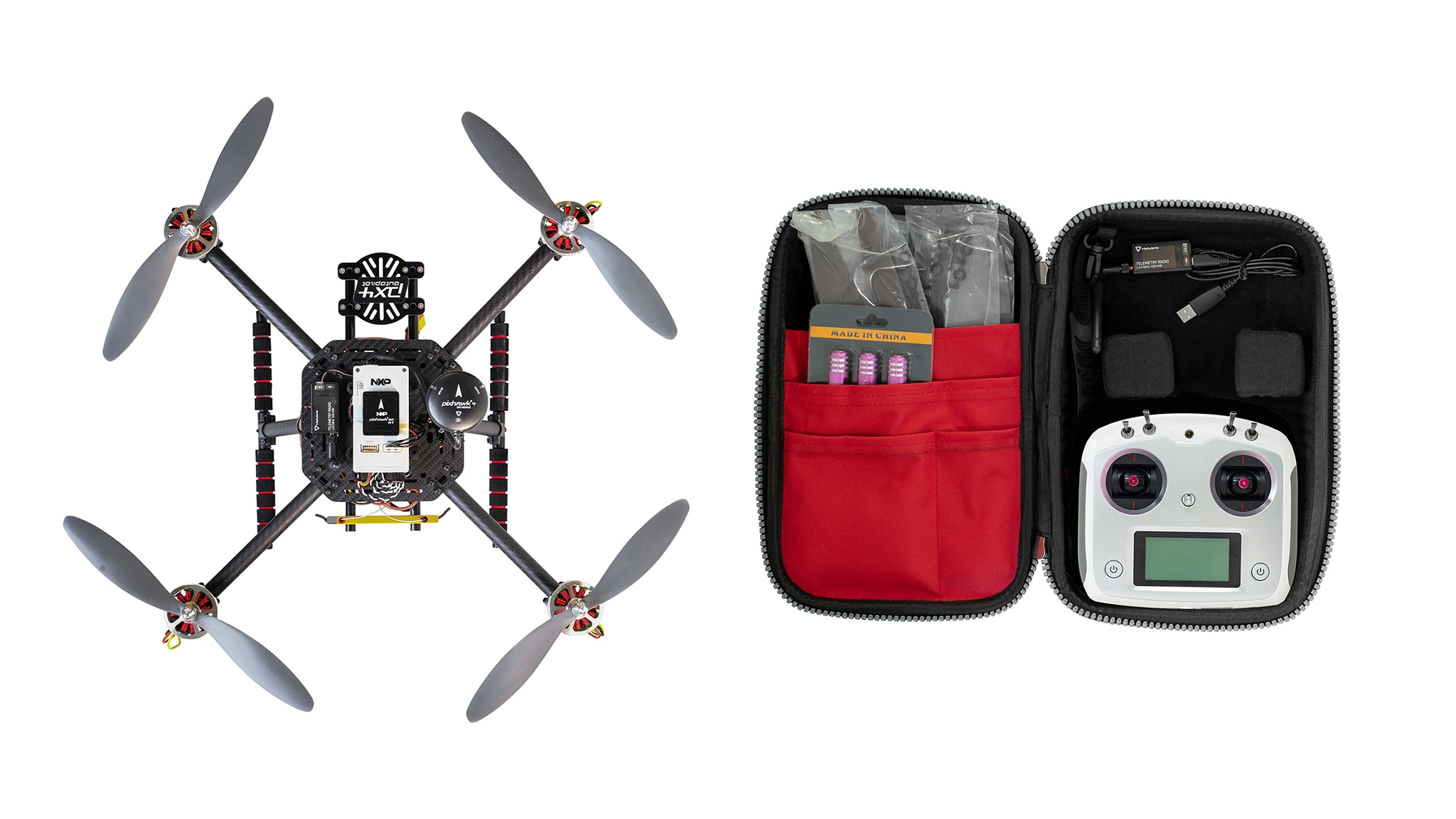

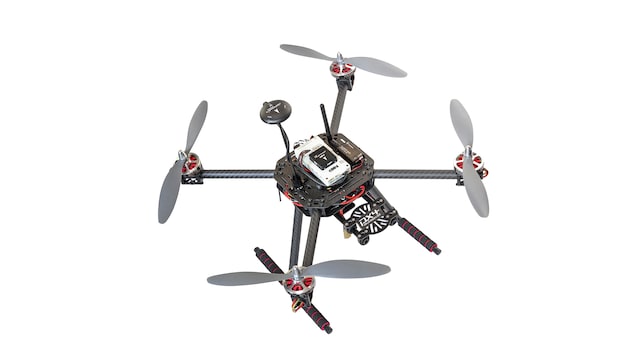

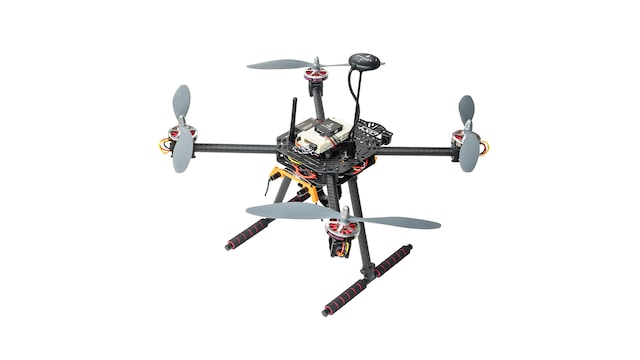

The MR-HGK-RT NXPHoverGames Kit UAV Robotics Reference Design combines the MR-VMU-RT1176 real-time vehicle management unit with modular hardware to self-assemble a drone. It supports the PX4 flight stack, Zephyr RTOS and Cognipilot, enabling flexible development in control, communications and autonomous systems. The platform integrates BLDC motor controllers, power distribution, networking and expansion support for components like NavQPlus, RTK-GPS and telemetry radios. This design accelerates prototyping for UAVs and robotic systems.

框图

选择框图:

Drone System

Real-Time Vehicle Management Unit Block Diagram

Real-Time Vehicle Management Unit

Drone System Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1170: i.MX RT1170：1GHz跨界MCU，配备Arm® Cortex®内核

Features

Core components

  • Dual-core Arm® Cortex-M7/M4 i.MX RT1176 Crossover MCU

Vehicle and robotics connectivity

  • 100Base-T1 Ethernet, triple CAN FD (SIC), UART, SPI, I²C, USB-C

Flight and actuator control

  • 12 PWM outputs, RC S-BUS, bidirectional D-Shot support 1 Gbit/s

Sensing and navigation

  • Triple IMU, dual barometer, dual GPS interfaces

Modular and expandable

  • Supports NavQPlus companion computer and FRDM boards

Software ecosystem

  • PX4, Zephyr® RTOS, Cognipilot, MCUXpresso SDK

购买选项

MR-HGK-RT-Image

点击展开

MR-HGK-RT
正常供应

MR-HGK-RT Unmanned Aerial Vehicle Robotics Reference Design.

    $895.00 USD
    现货 :5

    正常情况下 1-2个工作日内发货

    加入购物车
    从分销商处购买
    MR-VMU-RT1176-Image

    点击展开

    MR-VMU-RT1176
    正常供应

    Real-Time Vehicle Management Unit (VMU).

      $300.00 USD
      待定库存
      加入购物车
      从分销商处购买
