RS08LA Tool Summary Page

DEMO9RS08LA8

滚动图片以放大

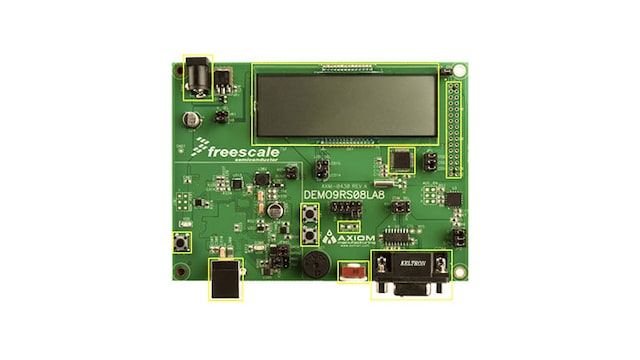

The cost effective DEMO9RS08LA8 demonstration kit contains everything a designer needs to develop and evaluate application code. The integrated USB multilink allows a designer to communicate with the board and target device with only a USB cable.

产品详情

支持的器件

处理器和微控制器

8位较早型号MCU

  • RS08LA: 8位带LCD驱动器的LA微控制器
  • RS08LE: 8 位带LCD驱动器的 LE 微控制器

Features

Microcontroller

  • MC9RS08LA8, 48 LQFP

Connectivity

  • Integrated P&E USB-BDM
  • 40-pin MCU I/O Connector
  • 2.0 mm Barrel Connector
  • BDM_PORT (not installed)
  • USB Connector
  • DB9 Connector

Power Management

  • On-board +5 V regulator
  • Power Input Selection Jumpers

Sensors

  • Temperature Sensor

User Components

  • 3 Push Switches; 4 User, 1 Reset
  • User Option Jumpers to disconnect Peripherals
  • 5 K ohm POT w /LP Filter
