15 W Buck无线充电接收器参考设计

WPR1500-BUCK

滚动图片以放大

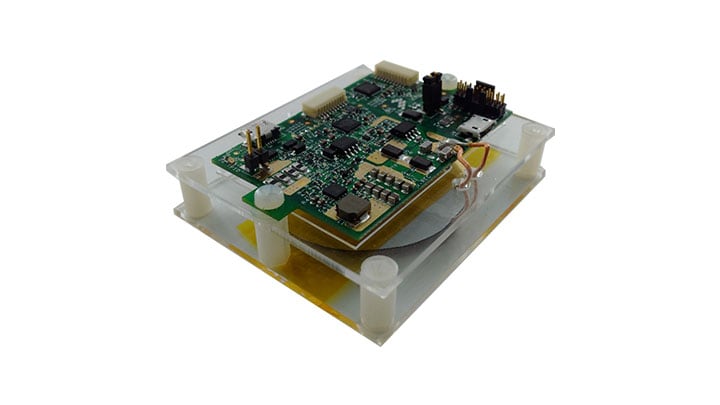

本款15 W无线充电接收器参考设计采用BUCK架构，搭载恩智浦MWPR1516接收控制器IC，能够管理和执行实施无线充电接收器解决方案所需的全部功能。

它符合无线充电联盟(WPC)最新的中等功率工作组(MPWG)规范，并且可接收任何Qi认证发射器件的充电。

中等功率无线充电接收器15 W WPC解决方案 - 简介

框图

无线充电接收器

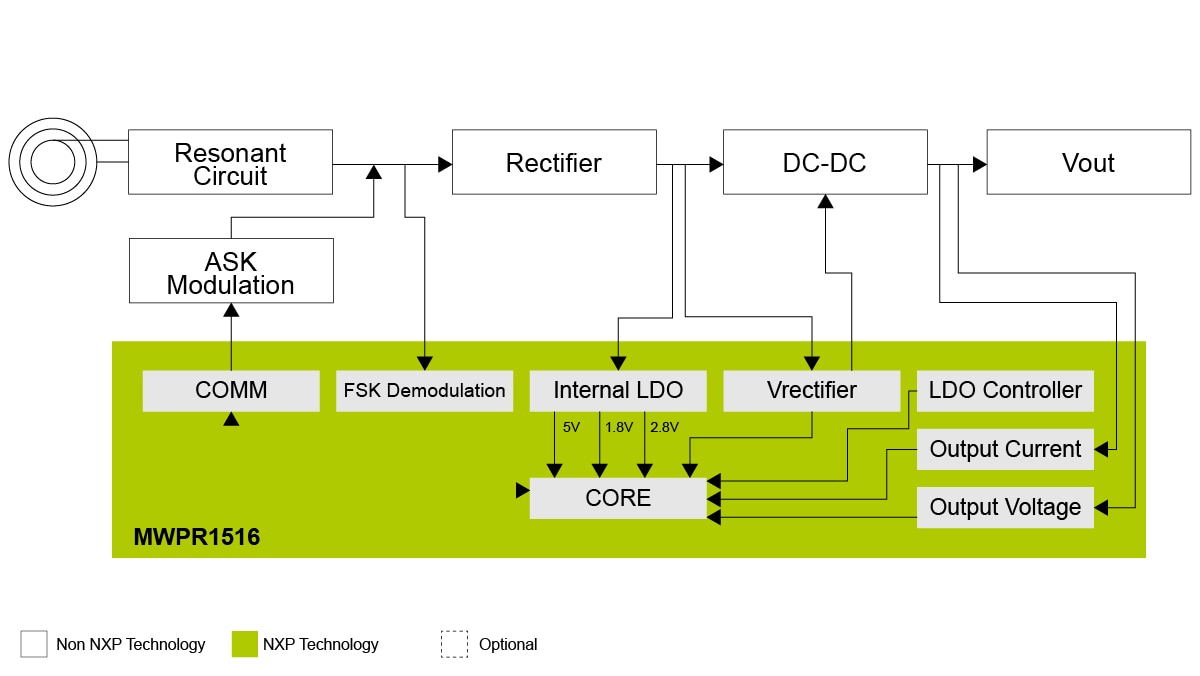

WPR1500-BUCK Block Diagram
获取框图PDF

支持的器件

电源管理

无线电源

特征

Interfaces

  • 12-bit ADC and PGA provide the easiest solution for small system level power loss detection to achieve FOD
  • USB/adaptor switcher to set wired charging as higher priority to save power
  • I2C and UART reserve the capability for receiver and main AP (application processor) communication for either security or content delivery

Features

  • Buck architecture provides flexibility for various output voltage targeting different application charging voltage requirement
  • Specially designed FSK and CNC models ease the MPWG bi-directional communication development
  • Reference solution with NXP® embedded wireless charger software libraries provides customer design freedom, products differentiation and access to essential NXP IPs
  • Provides a friendly user interface FreeMASTER to encourage interaction
  • Provides a highly integrated and flexible platform to help customer shorten development time and reduce time to market
  • Pre-validated according to WPC compliance testing procedure
  • The demonstration board provides 5 V output with 3 A capability and has the capability for other output voltage (up to 18 V) to support dual cells or 3 cell devices
