12 V Lead-Acid Battery Management System with LIN

RD9Z1-638-12V
停产

滚动图片以放大

The RD9Z1-638-12V is a Battery Management System (BMS) built to demonstrate the MM9Z1J638 Battery Sensor Module capabilities in a 12 V lead-acid application where high EMC performance is required to obtain high accuracy measurements on key battery parameters.

框图

12V Battery LIN

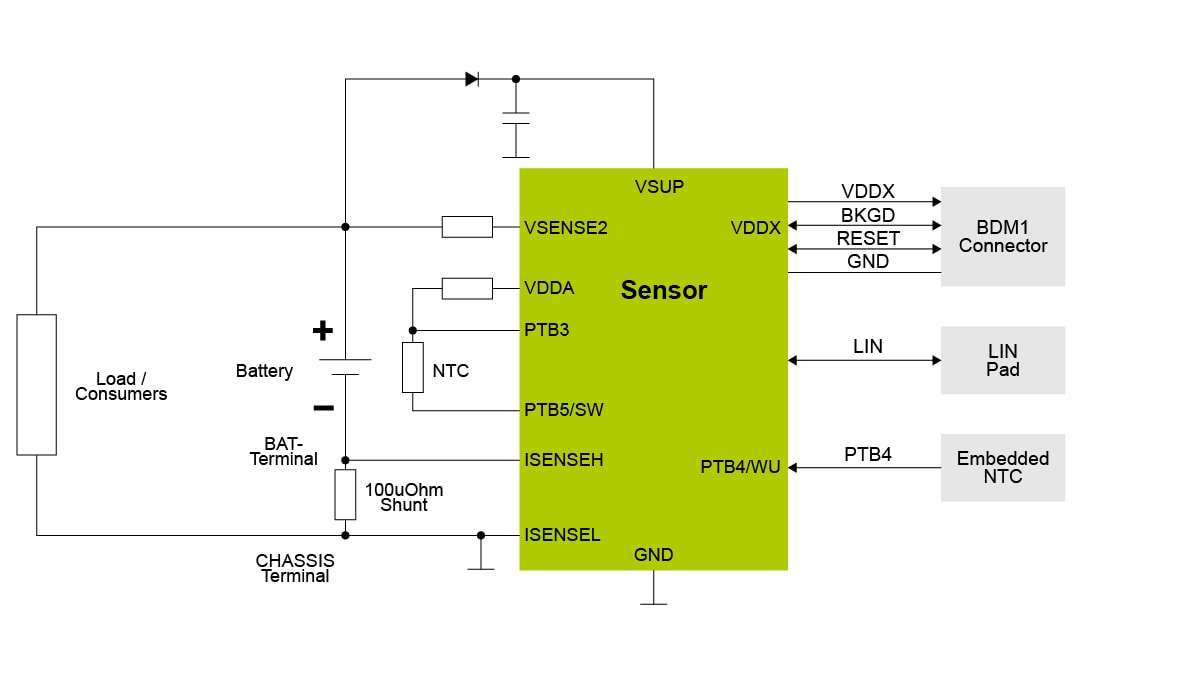

RD9Z1-638-12V LIN Block Diagram
获取框图PDF

支持的器件

电池管理

电池传感器

Features

MagniV S12Z MCU

  • Embedded MCU: 16-bit S12Z MCU

Power Management

  • Embedded power management

Sensing

  • Battery voltage sensing input (VSENSE2)
  • Internal temperature sensing
  • Embedded NTC for temperature sensing (PTB4)
  • Battery current sensing via mounted shunt (ISENSE)

Interfaces

  • LIN 2.2/2.1/2.0 interface

BDM Interface

  • BDM interface (For MCU programming and debugging)

购买选项

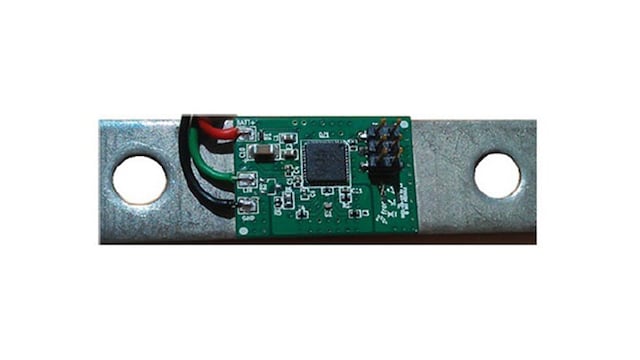

RD9Z1-638-12V-Image

点击展开

RD9Z1-638-12V
停产

Reference Design - MM9Z1_638, automotive Battery Management System for 12V Lead-Acid batteries.
