Freedom Development Platform for 72MHz KE17Z/KE13Z/KE12Z MCUs

FRDM-KE17Z

滚动图片以放大

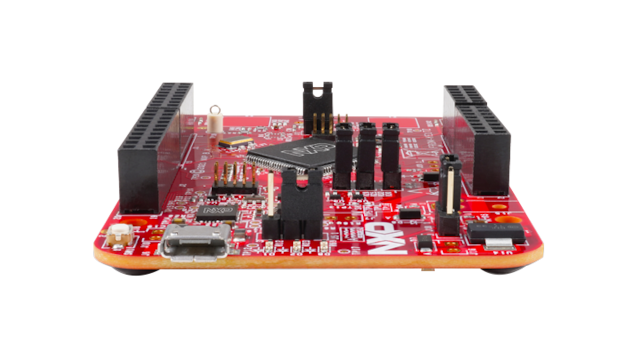

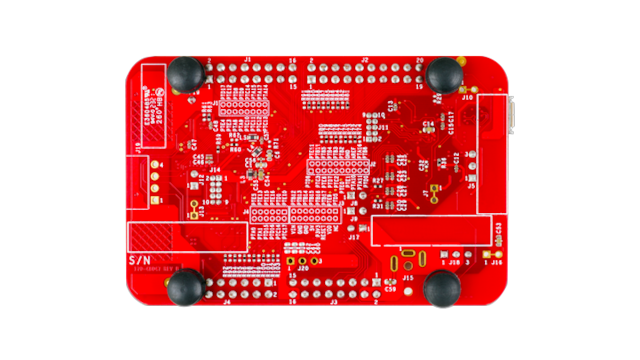

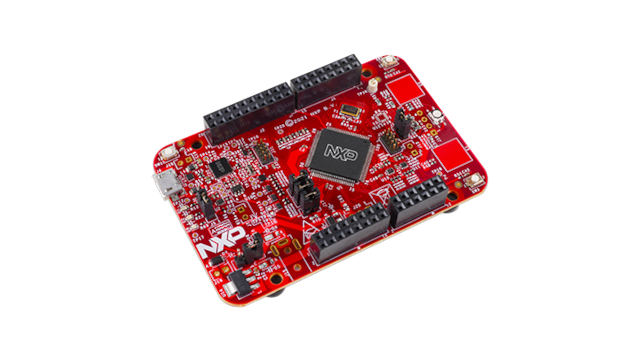

The FRDM-KE17Z Freedom Board is designed to work in standalone mode or as the main board of FRDM-TOUCH, FRDM-MC-LVBLDC and Arduino® boards.

This Freedom board is compatible with DC 5v and 3.3v power supply and features a KE17Z, a device boasting up to 256KB Flash and 48KB SRAM and numerous analog and digital peripherals.

The onboard interfaces include an RGB LED, an ambient temperature sensor, two capacitive touchpads.

An area is reserved for populating a 6-axis digital sensor, a 3-axis digital angular rate gyroscope.

支持的器件

处理器和微控制器

KE系列Arm Cortex-M4/M0+

  • KE1xZ: KE1xZ：Arm® Cortex®-M0+ 5V主流MCU，带有恩智浦触控和CAN控制功能

Features

Microcontroller

  • MKE17Z256VLL7 MCU (Arm® Cortex®-M0+)
  • 72MHz
  • 100LQFP package
  • 256 KB flash
  • 48 KB SRAM

Connectivity

  • I/O headers for easy access to MCU I/O pins

Debug

  • Onboard debug circuit: K20DX128VFM5 (OpenSDA) with a virtual serial port

Sensors

  • NXP inertial sensor, FXOS8700CQ (DNP)

Components

  • Thermistor, reset push button, two user buttons and one RGB LED
  • Two touch electrodes in the self-capacitive mode

购买选项

FRDM-KE17Z-Image

点击展开

  • FRDM-KE17Z

  • Freedom Development Platform for 72MHz KE17Z/KE13Z/KE12Z MCUs.

    • FRDM-KE17Z
    • Quick start guide
    • Supporting cable
  • CNY322.14
  • 数量为 1
    • 供货情况: 有货
    • 库存: 4
    • 运单: 正常情况下 1-2个工作日内发货
从恩智浦处购买从分销商处购买
