ARM Cortex-M0+_Kinetis KE02 20 MHz 32位5V MCU

Kinetis KE02子系列是Kinetis E系列的入门级产品，并与E系列产品组合以及恩智浦8位S08P系列的引脚兼容。该子系列包括一组强大的模拟、通信、定时和控制外设，这些外设有特定的闪存存储器空间和引脚数量。该系列微控制器具备低功耗、高稳定性和高性价比，是开发人员设计入门级32位解决方案的理想选择。该系列产品是新一代MCU解决方案，为高电气噪声环境中对成本敏感并要求高可靠性的器件应用提供更强的ESD/EMC性能。

数据手册

参考手册

产品详情

框图

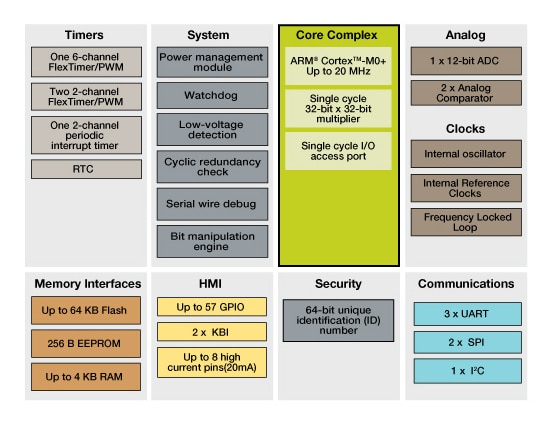

Kinetis E Series KE02 MCUs Block Diagram

获取框图PDF

特征

工作特性

电压范围：2.7至5.5 V
闪存写入电压范围：2.7至5.5 V
温度范围(环境)：-40至105°C

性能

高达48 MHz的ARM^® Cortex®-M0+内核
单周期32位 x 32位乘法器
单周期I/O访问端口

存储器与存储器接口

高达128 KB闪存
高达256 B EEPROM
高达4 KB RAM

时钟

振荡器(OSC) - 回路控制皮尔斯振荡器；晶体或陶瓷谐振器，频率范围为31.25 kHz至39.0625 kHz或4 MHz至20 MHz
内部时钟源(ICS) - 内部FLL带内部或外部参考时钟，温度范围在0 °C到70 °C之间变化时内部参考时钟精度修正不超过1%，温度在-40 °C到105 °C之间变化时误差不超过1.5%，高达20 MHz
内部1 kHz低功耗振荡器(LPO)

系统外设

电源管理模块(PMC)具有三种模式：运行、等待、停止
带复位或中断功能的低电压检测(LVD)，可选择的跳变点
带独立时钟源的看门狗(WDOG)
可编程循环冗余校验模块(CRC)
串行电路调试接口(SWD)
位操作引擎(BME)

安全与完整性模块

每个芯片具有64位唯一识别(ID)号

人机接口

高达57个通用输入/输出(GPIO)
两个键盘中断模块(KBI)

模拟模块

一个16通道12位SAR ADC，带有内部带隙参考通道，在停止模式下运行，可选择的硬件触发器(ADC)
两个模拟比较器，内含一个6位DAC和可编程参考输入(ACMP)

定时器

一个6通道FlexTimer/PWM (FTM)
两个双通道FlexTimer/PWM (FTM)
一个双通道周期中断定时器(PIT)
一个实时时钟(RTC)
一个脉宽定时器(PWT)
一个高速定时器

设计资源

设计文件

1 设计文件

^{符号和尺寸}
Kinetis^® Symbols, Footprints and Models

INTERNAL版本 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

下载

硬件

1-5 / 6 硬件

^{仿真器、探测器和编程器}
Universal Multilink开发接口

UMultilink
^{仿真器、探测器和编程器}
LPC-Link2

OM13054
^{仿真器、探测器和编程器}
Universal Multilink FX高速开发接口

U-MULTILINK-FX
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{评估/开发板与系统}

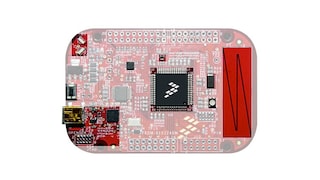

面向Kinetis KE02 MCU的Freedom开发平台
