Secure Provisioning SDK (SPSDK)
SPSDK 接收通知
NXP provides MCUXpresso Secure Provisioning (SEC) and Secure Provisioning SDK (SPSDK) for trial run and mass production use. Both SEC tool and SPSDK support secure programming and device provisioning on NXP's microcontrollers at the production stage.
MCUXpresso Secure Provisioning (SEC) tool is a GUI-based tool which leverages low-level functionality of the open-source SPSDK with its binary executables released as part of the SEC tool. The SEC tool graphical interface makes production flow simpler for general needs of a production process.

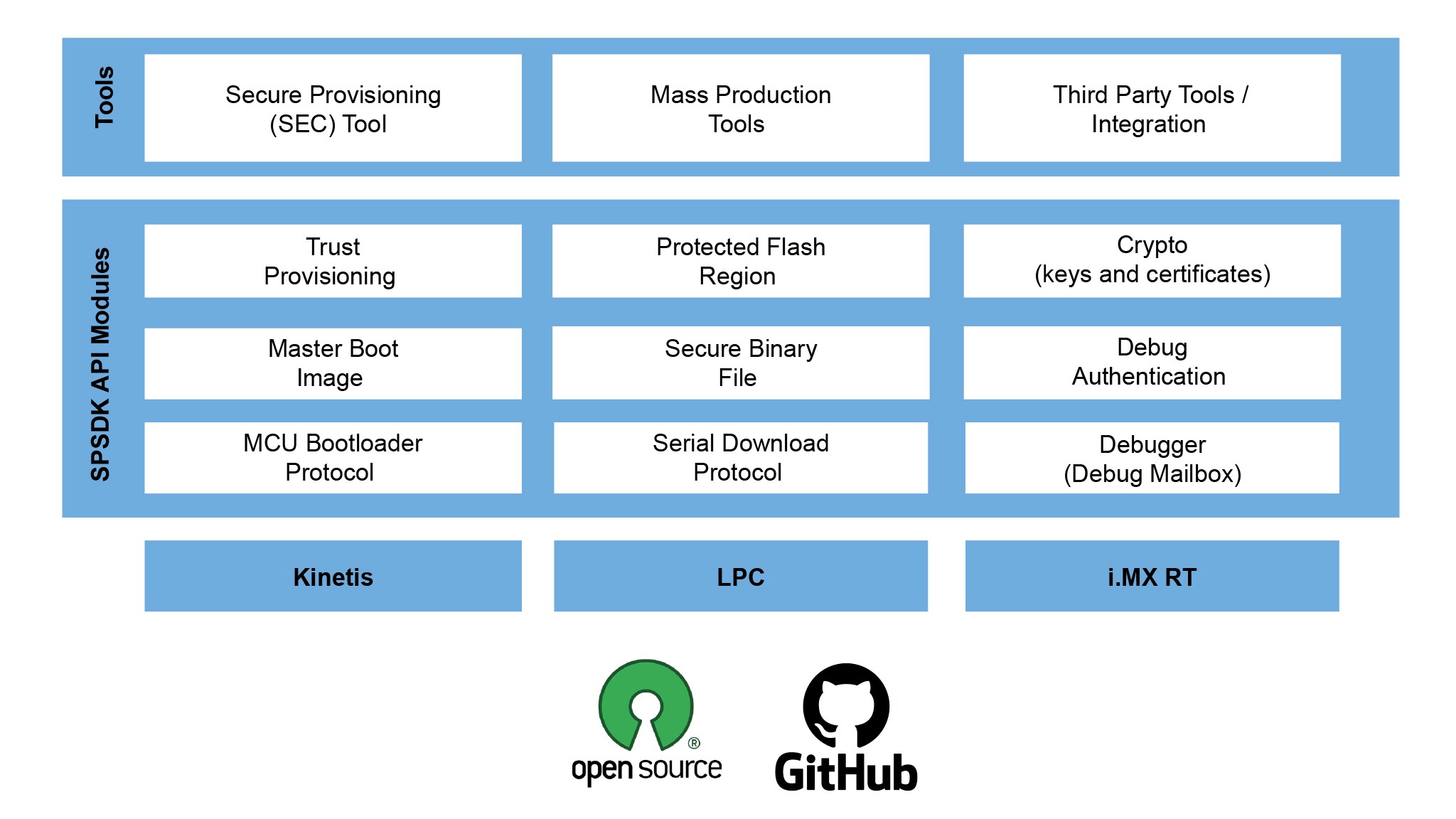

Secure Provisioning SDK (SPSDK) is an open-source development kit with its source code released on Github and PyPI. It contains a set of API modules for custom production tool development which requires more advanced secure provisioning flow. SPSDK enables connection and communication with NXP’s microcontrollers for the following purposes:
- Generation of Secure Binary (SB) bootable images
- Security features configuration (CMPA, CFPA, Trustzone, secure bootloader, debug authentication, etc.)
- Generation and management of cryptographic keys and certificates
- Trust provisioning and secure programming through MCU Bootloader
- Debug authentication through J-Link, PEmicro and PyOCD debug probes
软件详情
Features
Trust Provisioning
- Keys generation and provisioning
- Certificates generation and provisioning
- Secure binary image programming
- Support Smart Card Trust Provisioning and Device HSM Trust Provisioning
Protected Flash Region (PFR) / Flash Information Register (IFR)
- Generation and parsing of PFR/IFR data including CMPA and CFPA
- Boot configuration
- Debug configuration
- Code encryption configuration
Crypto
- Secret keys generation
- Generation of X.509 digital certificates including self-signed certificates
- Verification of digital certificates and signatures
Master Boot Image
- Master Boot image generation
Secure Binary File
- Generation of Secure Binary (SB) bootable images
- Support SB.2 and SB.3 secure binary formats
MCU Bootloader Protocol
- Interacts with the on-chip ROM bootloader
Serial Download Protocol (SDP)
- Download an image to a microcontroller over USB and UART serial connection
Debugger (Debug Mailbox) and Debug Authentication
- Debug interface access control
- Allow access to select parts of firmware and hardware with authorization
