MP-A11 固定频率发射机 22 W 能力参考设计

使用 WCT10xx IC 的单线圈固定频率无线充电发射器的参考设计

概述

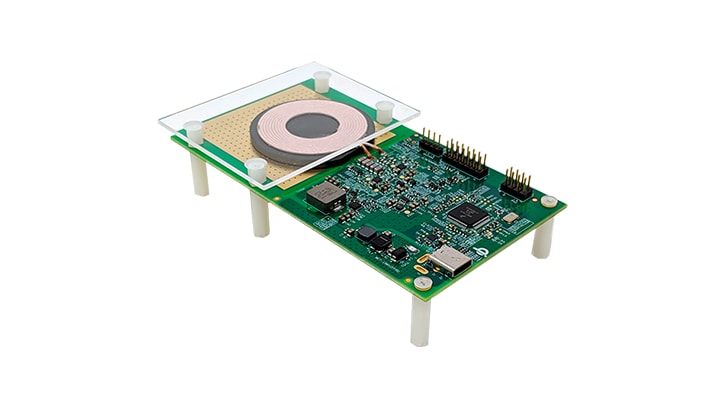

MP-A11 22W SINGLE COIL TRANSMITTER USB

产品规格

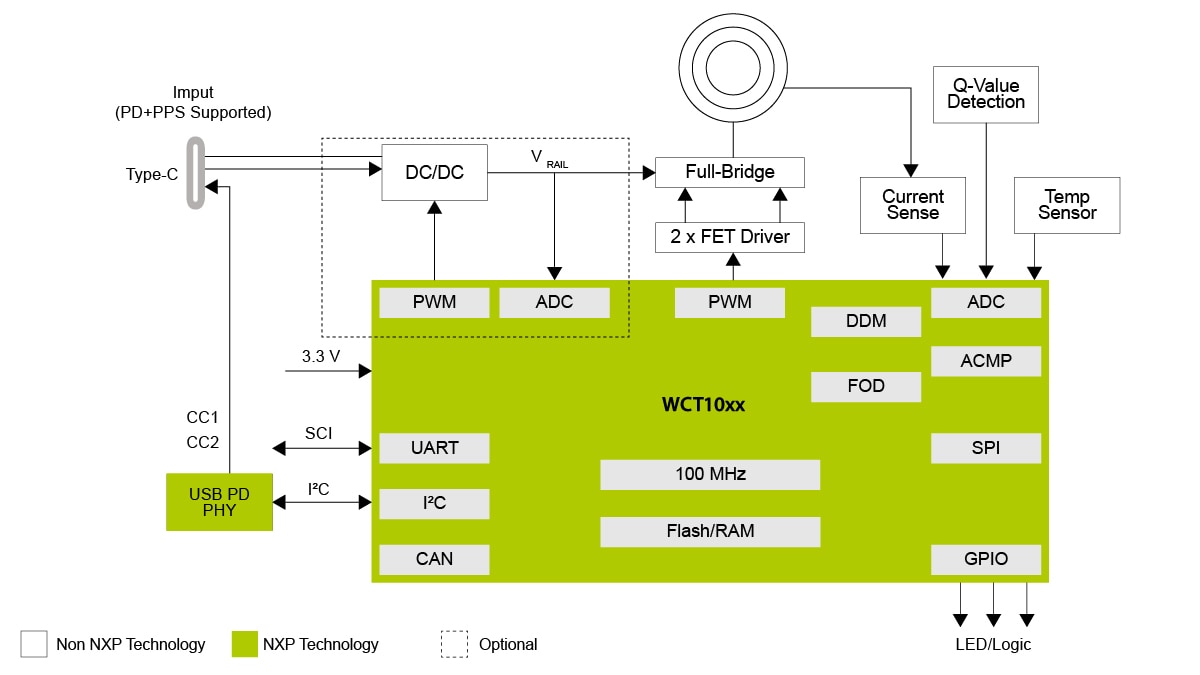

选择一个图表

Technical and Functional Specifications

Device

  • MWCT101x

Memory

  • 64 kB/96 kB/256 kB

Wireless Power Standard

Qi 1.2.4

Power Profile

22 W, compatible with EPP 1 5W

Transmitter Type

MP-A11 (all types supported)

Operating Frequency

125 ± 5 kHZ for Qi devices with 6 Hz accuracy

Safety

Foreign object detection

Efficiency

75%

Functionality

  • Compliant with the Qi v1.2.4 specification
  • WPC MP-A11 topology (introduced by NXP)
  • Compatible with industrial and consumer extended power profile (EPP) - 15 W
  • Fixed frequency, cost-optimized consumer design
  • Greater than 70% transfer efficiency
  • Integrated digital demodulation on-chip
  • Q-Factor and robust power loss foreign object detection (FOD)
  • Supports I2C, UART, SPI, and CAN interfaces
  • Software-based solution provides maximum design freedom

Debugging

  • UART of JTAG interfaces

购买

  • WCT-15W1CFFPD   Active

  • MP-A11 Fixed Frequency Transmitter 22 Watt Capability Reference Design
    • WCT-15W1CFFPD
    • 1 @ CNY
    • CNY854.72
    • 使用优惠券
    • 发行人

    Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

1579109330588723448640

设计资源

快速入门

用户指南

WCT1012VLF/WCT1013VLH用户指南

这些文档侧重于使用 WCT1013VXX 板。

勘误表

WCT-15W1CFFPD勘误表

本文档详细介绍了WCT-15W1CFFPD的所有已知勘误表。

版本说明

消费电子MP-A11 (WCT-15W1CFFPD)。

WCT1012VLF/WCT1013VLH 1.0 版 (WCT-15W1CFFPD) 包为消费者提供 22 W 单线圈发射器解决方案。
