Name: 面向MC24XS4系列的Freedom硬件
Price: 41.40 USD
Availability: BackOrder

产品详情

支持的器件

处理器和微控制器

K6x以太网

K64_120: Kinetis^® K64-120 MHz, 256KB SRAM微控制器(MCU)基于Arm^® Cortex^®-M4内核

KL系列Cortex-M0+

KL2x: Kinetis^® KL2x-72/96 MHz, USB超低功耗微控制器(MCU)，基于Arm^® Cortex^®-M0+内核

KV系列Cortex-M4/M0+/M7

KV1x: Kinetis® KV1x-75 MHz，入门级3相FOC / 无传感器电机控制微控制器(MCU)，基于Arm® Cortex®-M0+内核

通用负载开关

高边开关

MC24XS4: 24V多用途低导通电阻eXtreme开关

特征

主板

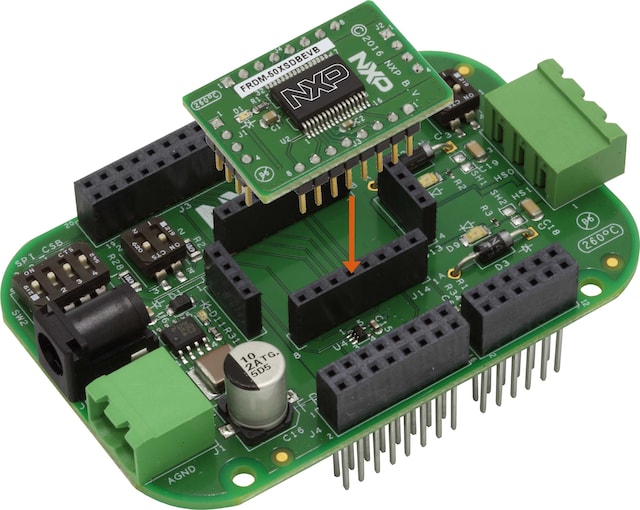

与MCU关联的FRDM-24XSMBEVB

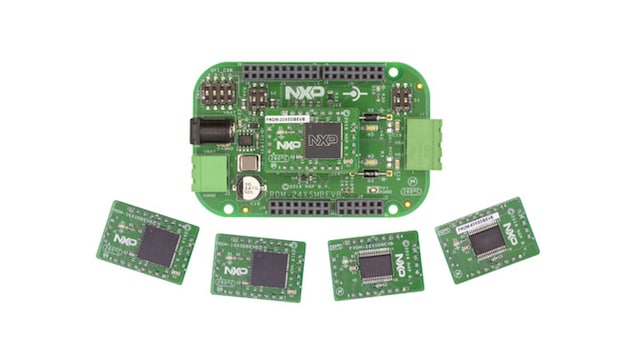

涵盖该系列5个器件的5个不同的shield扩展板

FRDM-06XSDBEVB：涵盖MC06XS4200 (2个输出6mOhm，采用PQFN封装)
FRDM-10XSDBEVB：涵盖MC10XS4200 (2个输出10mOhm，采用PQFN封装)
FRDM-20XSDBEVB：涵盖MC20XS4200 (2个输出20mOhm，采用PQFN封装)
FRDM-22XSDBEVB：涵盖MC22XS4200 (2个输出22mOhm，采用SOIC32封装)
FRDM-50XSDBEVB：涵盖MC50XS4200 (2个输出50mOhm，采用SOIC32封装)

此电路板可以控制各种类型的负载，如电磁阀、PLC、DC电机、灯泡或LED等

这些器件还可由16位SPI来驱动，方法是采用以下组件

带有SPIGen软件的KL25Z
采用Processor Expert组件的KL25Z、KV10Z和K64F 采用CodeWarrior 10.6或Kinetis Design Studio v3.0或更高版本的36VeXtremeSwitch
故障安全模式操作(电路板上的开关)中的直接输入信号

这些器件可设置过流特征曲线，通道控制包括：PWM占空比、并行模式、输出ON和OFF开路负载检测、过热关断和预警以及错误报告

输出电流监控，带可编程同步信号
该系列采用可兼容的SPI软件驱动

购买选项

点击展开

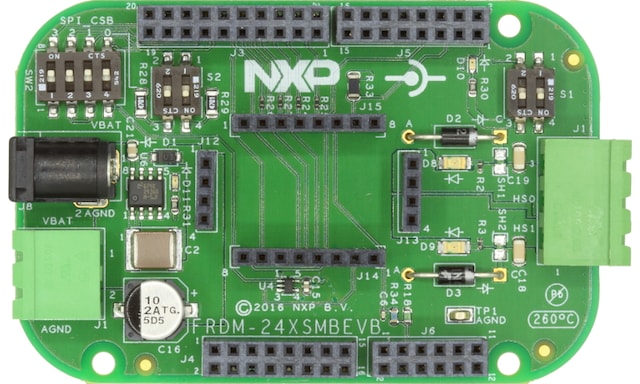

FRDM-24XSMBEVB
正常供应

Freedom platform mother board for 24V extreme switches.

套件包含

Freedom电路板
功率输入/输出接头
快速入门指南

$41.40 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

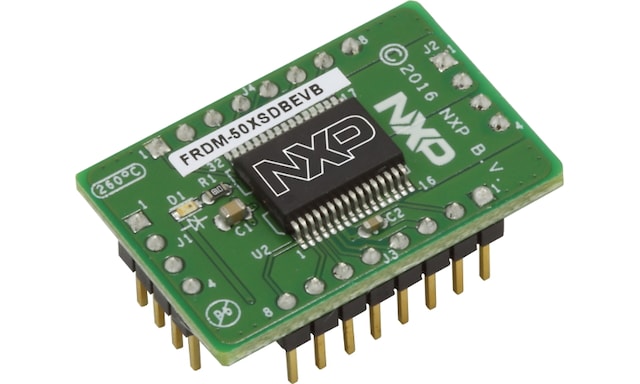

FRDM-50XSDBEVB
正常供应

Freedom platform daughter board for 24V extreme switches 50mOhm.

$34.50 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

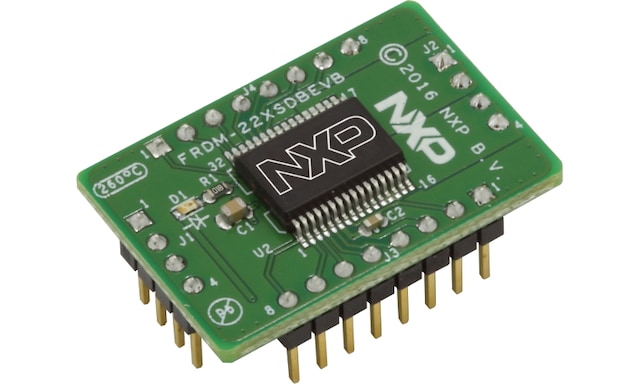

FRDM-22XSDBEVB
正常供应

Freedom platform daughter board for 24V extreme switches 22mOhm.

$34.50 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

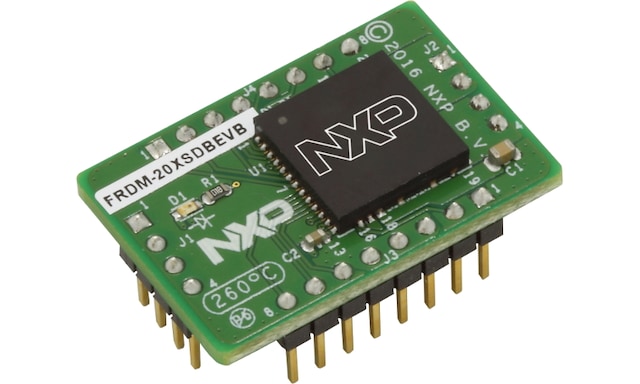

FRDM-20XSDBEVB
正常供应

Freedom platform daughter board for 24V extreme switches 20mOhm.

$34.50 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

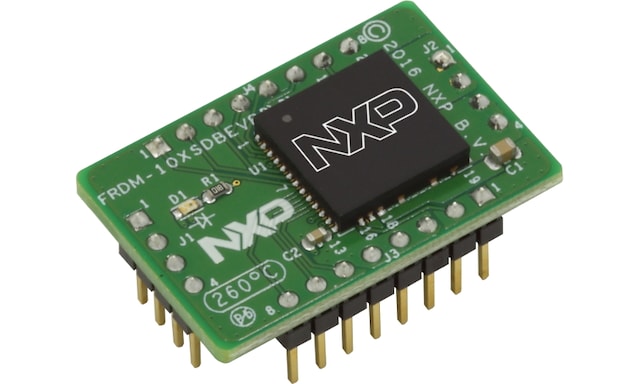

FRDM-10XSDBEVB
正常供应

Freedom platform daughter board for 24V extreme switches 10mOhm.

$34.50 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

FRDM-06XSDBEVB
正常供应

Freedom platform daughter board for 24V extreme switches 6mOhm.

套件包含

$34.50 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别

6 文件

紧凑列表

MC10XS4200, Dual 24 V, 10 mOhm High Side Switch - Data Sheet[MC10XS4200]

PDFFeb 17, 2023版本更新 9
MC20XS4200, Dual 24 V, 20 mOhm High Side Switch - Data Sheet[MC20XS4200]

PDFNov 9, 2022版本更新 8.0
MC22XS4200, Dual 24 V, 22 mOhm High-side Switch - Data Sheet[MC22XS4200]

PDFSep 21, 2022版本更新 7.0
MC50XS4200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet[MC50XS4200]

PDFSep 6, 2022版本更新 7.0
MC06XS4200, Dual 24 V, 6.0 mOhm High-side Switch - Data Sheet[MC06XS4200]

PDFMar 25, 2022版本更新 6

KTFRDM24XS4EVBUG Board User Guide[KTFRDM24XS4EVBUG]快速入门

PDFMay 22, 2017版本更新 1

设计资源

Related Hardware

快速参考恩智浦板类型.

1 硬件产品

评估板和开发板
嵌入式组件：36V塔式系统eXtreme开关模块
试生产

TWR-MC36XSDEVB类似

软件

快速参考恩智浦软件类型.

3 软件文件

应用示范软件
SPiGen Software FRDM-24XS4-SW.spi

SPI版本 1.0Mar 1, 2017 12:19:003.06 KBFRDM-24XS4-SW
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
应用示范软件
KDS Software files: FRDM-24XSMBEVB_KL25z-Demo.zip

ZIP版本 1.0Mar 1, 2017 12:19:001.93 MBFRDM-24XSMBEVB_KL25z
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
BSP及设备驱动
Processor Expert support for 36V eXtreme switches with examples

ZIP版本 1.0Nov 19, 2014 00:00:006.24 MB36V-EXTREMESWITCH-PEX-SW-EMC
